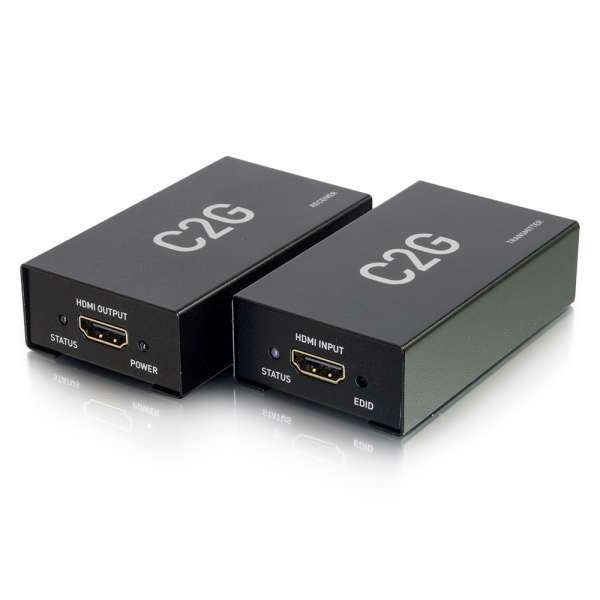

C2G 60180 - HDMI Over Cat5/6 Extender up to 164ft (50m)

C2G 60180 - HDMI Over Cat5/6 Extender up to 164ft (50m)

Extend HDMI video and audio up to 164ft (50m) using a single category patch cable

The HDMI Over Cat5/6 Extender is ideal for extending digital video and audio, making it a great solution for digital signs, schools, churches, trade show presentations, or any application where the HDMI source is farther than 50 feet from the display. The extender can also send HDMI signals over existing Cat5 or Cat6 cable infrastructure for cost-effective reliability, while maintaining high performance quality.

Convenience
This solution is able to extend HDMI video and audio up to 164 feet and requires the use of a single Cat5 or Cat6 patch cable. With no drivers or software to install, the HDMI over Cat5/6 Extender provides total plug and play convenience. Simply connect the transmitter to the video source, the receiver to the display, and extend with a single category cable for quality video and audio.

Performance
Supporting resolutions up to 1080p at 60Hz and delivering quality sound allows the HDMI extender to meet the requirements for high performance applications and adds greater functionality to displays.

Connectors
• (1) DC Jack: OD=5.5mm, ID=2.0mm, Contact Pin: Nickel Plated, Shell: Nickel PLated, Fram: 94V-0, Thermoplastic - Black
• (2) RJ45: 8P8C, Contact Pin: Gold Plated, Shell: Nickel Plated, Frame: 94V-0, Thermoplastic - Black
• (3) HDMI: Female, Contact Pin: Gold Plated, 3UM, Shell: Gold Flash, Frame: 94V-0, Thermoplastic - Black
• (4) Screw for Housing: M3*4 Countersink, Carbon Steel - Black

Power Adapter Specifications
• International Plug AC/DC Adapter - 2 pcs (UK, EU, AU, US Plug each 2 pcs)
• Input : 100~240 VAC, 50~60Hz, 0.5A
• Output: 5 VDC, 1 A
• Cable Length: 1500±100mm
• Pin Diameter: OD: 5.5mm, ID: 2.1mm
• Center Pin Polarity: Positive

Physical Specifications
• Operating Temperature Range: 0~40°C, 0~80% RH (Non-condensing)
• Storage Temperature: 0~40°C, 0~80% RH (Non-condensing)
• Product is marked and conforms to 2011/65/EU ROHS
• Dimensions (L×W×H): 84.5 x 49 x 24mm

Resolution/Distance
• Solid Conductor Cat6 1080i up to 50M
• Solid Conductor Cat6 1080P up to 50M
• Solid Conductor Cat5e 1080i up to 25M
• Solid Conductor Cat5e 1080P up to 25M
