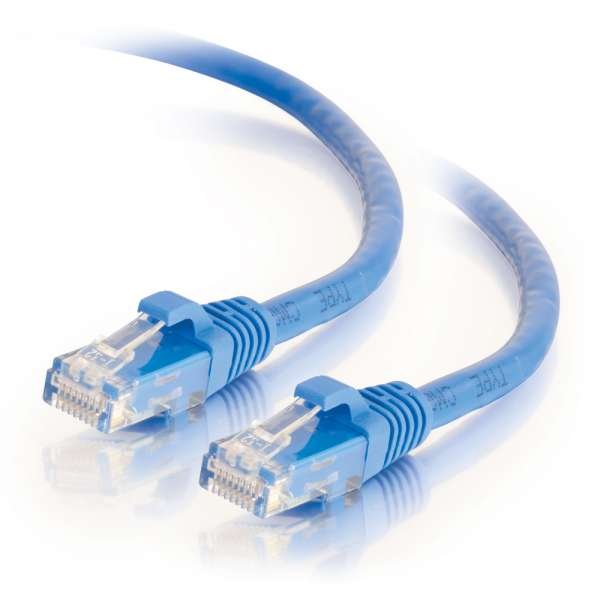

C2G 27145 - 25ft Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable - Blue
C2G 27145 - 25ft Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable - Blue
Snagless design for network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.
Product Features• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 10 colors to color-code a network
• Available in lengths up to 150ft
Product Description
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 10 colors to color-code a network
• Available in lengths up to 150ft
Product Description
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
Product Specifications
Product Specifications
Color : | Blue |
---|---|
Length : | 25.00 Foot |
Jacket Rating : | Standard Non-Rated |
UPC : | 757120271451 |
Warranty : | Lifetime |
Vendor : | C2G |
Weight : | 0.670 LB |
Electrical Characteristics
• Conductor DC Resistance - 9.38Ω100m (maximum)
• Impedance - 100Ω
• Capacitance - 5600pf/100m
• Propagation Delay - 545ns/100m (maximum)
• Delay Skew - 45ns/100m (maximum)
Physical Characteristics
• Wiring Scheme - T568B
• Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
• Connector: 50 micron gold-plated RJ45
• Temperature Rating - 60°C
• Voltage Rating - 30V
• Approvals - RoHS Compliant
• Warranty - Lifetime
• Package Type - Polybag
Conductor (Qty. 4 twisted pair)
• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.98 ± 0.05mm
• Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
Connector Type (Qty. 2)
• Connector Type - 8P8C (RJ45)
• Gender - Male
• Connector Material - Polycarbonate
• Contact Material - Copper Alloy, Gold Plating - 50µm
• Hood Material - Molded PVC
Overall Cable
• Jacket - PVC
• Minimum Average Thickness - 0.60mm
• Outer Diameter - 6.20 ± 0.30mm
• Conductor DC Resistance - 9.38Ω100m (maximum)
• Impedance - 100Ω
• Capacitance - 5600pf/100m
• Propagation Delay - 545ns/100m (maximum)
• Delay Skew - 45ns/100m (maximum)
Physical Characteristics
• Wiring Scheme - T568B
• Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
• Connector: 50 micron gold-plated RJ45
• Temperature Rating - 60°C
• Voltage Rating - 30V
• Approvals - RoHS Compliant
• Warranty - Lifetime
• Package Type - Polybag
Conductor (Qty. 4 twisted pair)
• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.98 ± 0.05mm
• Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
Connector Type (Qty. 2)
• Connector Type - 8P8C (RJ45)
• Gender - Male
• Connector Material - Polycarbonate
• Contact Material - Copper Alloy, Gold Plating - 50µm
• Hood Material - Molded PVC
Overall Cable
• Jacket - PVC
• Minimum Average Thickness - 0.60mm
• Outer Diameter - 6.20 ± 0.30mm
Product Uses
• Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
• 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
• 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
• Voice; T1
• 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
• 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
• Voice; T1
