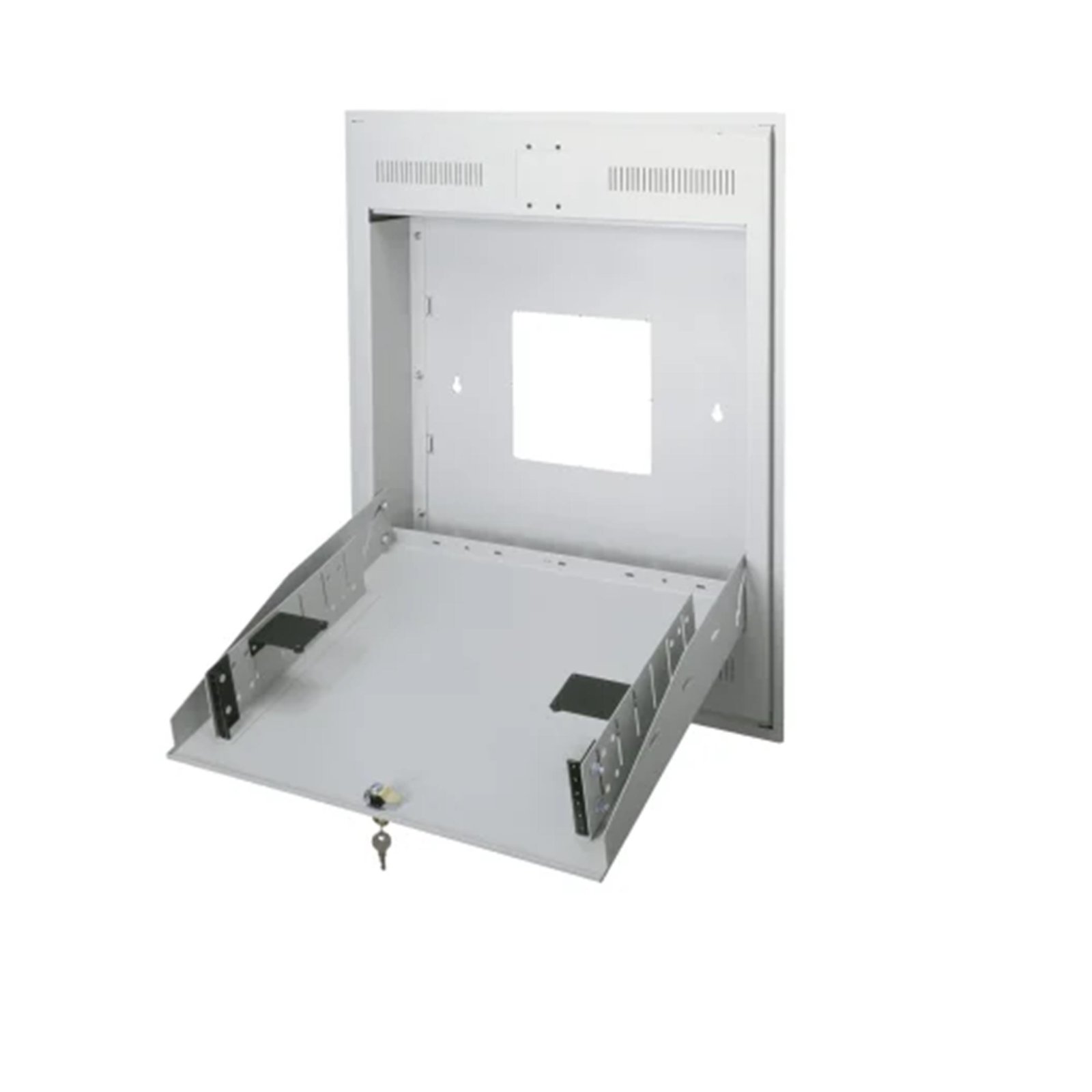

Middle Atlantic TOR-4-20RP TOR Series Tilt Out Wall Rack
Middle Atlantic TOR-4-20RP TOR Series Tilt Out Wall Rack
Tilt Out Rack is ideal for small sound systems, paging and patching applications in schools, hotels, offices or anywhere a secure, low-profile wall mount solution is required. Available in surface-mount and flush-mount styles.
- Mounts between studs, flush with wall surface
- Tamper resistant design ideal for use in non-secure areas
- Mount non-rackmount equipment using included clamp bars
- 10-32 threaded rackrail is adjustable to accommodate handles and knobs
- Vented for effective passive thermal management
- Decora and UCP knockouts provided to mount connectors and devices
Dimensions & Measurements
Depth
7.9 in (20.2 cm)
Height
30.2 in (76.7 cm)
Primary Package Weight
47.5 lbs (21.5 kg)
Rack Units
4 RU
UL Load Capacity
100 lbs (45.4 kg)
Usable Depth
20 in (50.8 cm)
Usable Height
7 in (17.8 cm)
Weight Capacity
100 lbs (45.4 kg)
Width
24.5 in (62.2 cm)
Characteristics & Features
Application
In-Wall
Federal Ops Country of Origin
USA
Finish
Putty Powder Coat
Mounting Style
Flush
Rack Rail Type
10-32
Certifications & Warranties
Certifications
- CSA Standard
- TAA
- UL Listed
